> >>Moteur Scorpion HKIV-4025-850KV

Hélico

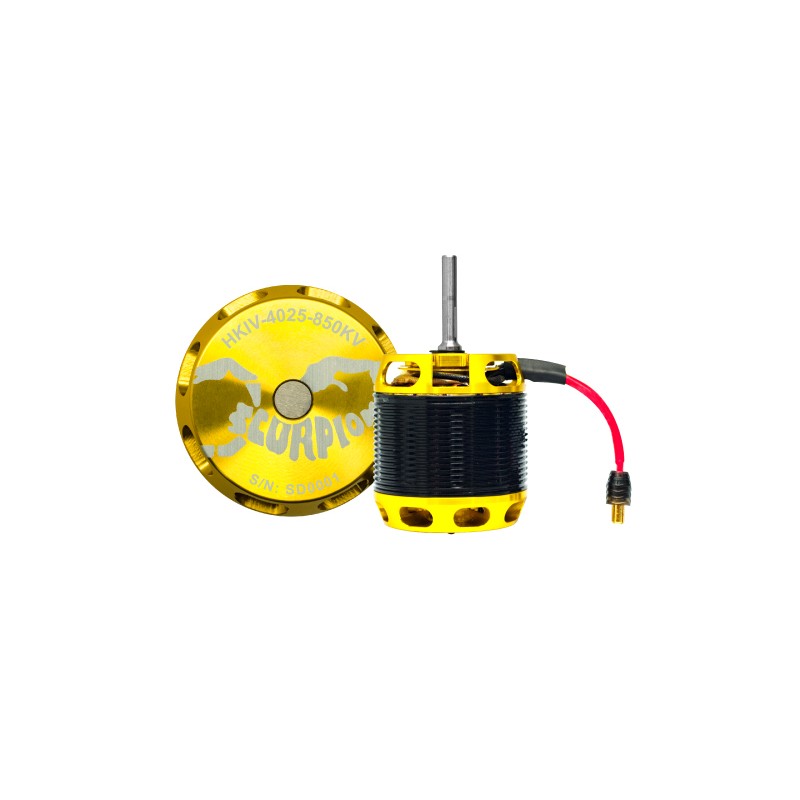

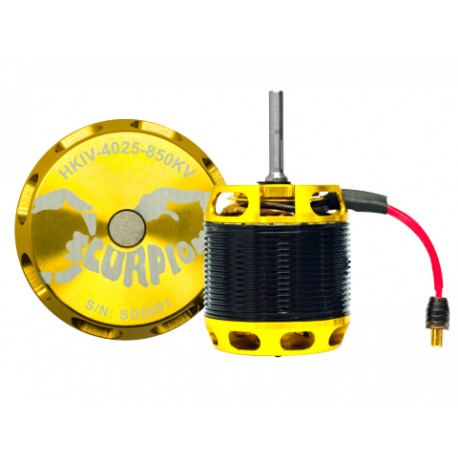

Scorpion HKIV-4025-850KV Agrandir l'image

Moteur Scorpion HKIV-4025-850KV

HKIV-4025-850

Neuf

260,00 € TTC

En savoir plus

Specifications

Stator Diameter 40 mm(1.57 in)
Stator Thickness 25 mm(0.98 in)
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 4+4 Turn Delta
Motor Wire 1-Strand 1.6 mm
Motor Kv 850KV RPM/Volt
No-Load Current (IO/10v) 3.69 Amps
Motor Resistance (RM) 0.009 Ohms
Max Continuous Current 95 Amp
Max Continuous Power 2812 Watt
Weight 347 Grams (10.58 oz)
Outside Diameter 49.50 mm (1.95 in)
Shaft Diameter 5.98 mm (0.24 in)
Body Length 54 mm (2.13 in)
Overall Shaft Length 84.6 mm (3.33 in)
Max Lipo Cell 8s
Peak Continuous Current 110 Amps (5 seconds)
Peak Continuous Power 3256 Watts (5 seconds)
Motor Timing 5deg
Drive Frequency 8kHz

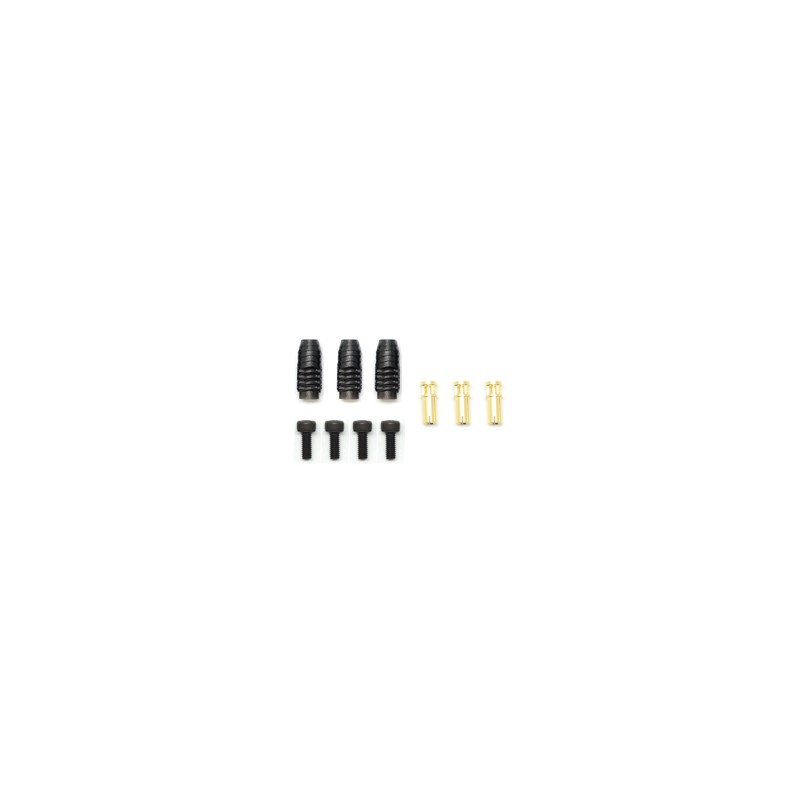

Included in the Box

1 x Scorpion HKIV-4025-850KV Motor
3 x Female Connectors
3 x Connector Cover
4 x M3 Screws
4 x M4 Screws
